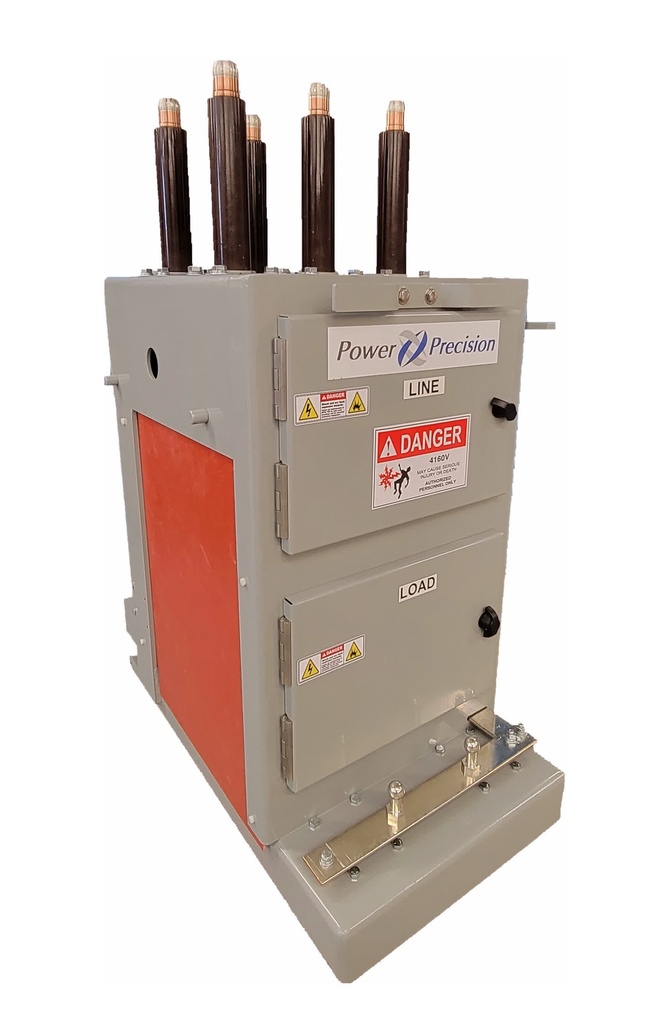

Grounding truck for type AM4.16-250-8H

Grounding Truck for 5KV Magne-blast Switchgear

Draw out grounding truck for type AM4.16-250-8H Magne-blast switchgear.

6 x 5 KV insulated poles for line and load bus connections

6 line and load bus test points accessible at the front of the breaker for zero energy tests prior to grounding.

3 x line side ground balls for connection of customers temporary grounds

3 x load side ground balls for connection of customers temporary grounds

Insulated barriers between line and load buss to allow line or load bus to remain energized.

Electrically and Mechanically shop tested in shop test switchgear and as per NETA testing standards.
